Jayco Hoist & Cranes Mfg. Co.
JAYCO' is one of the leading manufacturer of Electric Hoists, Cranes, Goods Lifts, hydraulic lifts, stackers & other Material Handling Equipments. We cater to the needs of Core Industries in–Chemical, Pharma, Heavy Engineering, Steel, Plastic, Textiles, Power, and Construction etc...
JAYCO has been serving the core sector of industries in India & for overseas markets for more than four decades having expertise in industrial lifting & material handling equipments.
OUR PRODUCTS

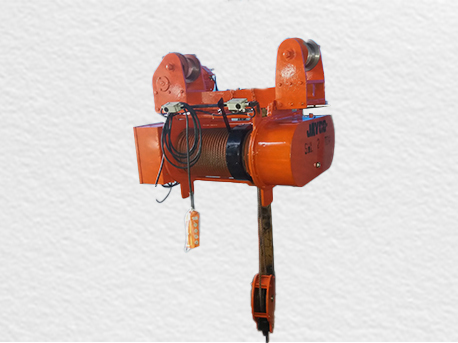

ELECTRIC HOIST
JAYCO manufactured Wire Rope Electric Hoists are compact, rugged & elegant in appearance to accommodate specific requirements, flexible trolleys to negotiate small radius, high speeds & high lifts, hoists suitable for steel mill duty, foundries & chemicals plants. This can be manufactured on the basis of a clients’ requirement. This is widely used in many areas which would help in reducing the physical work done by mankind.
The Hoists are of Fixed Type or Movable with Travelling Trolleys. Top-quality trolley hoists have a low headroom configuration that provides the lowest headroom possible by positioning the trolley parallel with the beam.
Enquire NowEOT CRANES
Single girder cranes cost less in many ways as only cross girders are needed; quicker installation; runway beams are lighter enough due to reduced crane dead weight.
JAYCO manufactures Single Girder Overhead Cranes in SWLs ranging from 250kg to 100MT in different configurations. Typically, beam or box type main girders are used depending on the span of the crane. We specialize in designing a robust structure for smooth operation. They offer easy access in all the Six directions – Long Travel, Cross Travel & Up/Down movement. Cranes are designed & manufactured in accordance with IS:3177, IS:4137 & IS:807.
Enquire NowJIB CRANES
JAYCO JIB Cranes comes with easily Rotating Arm in 180º or 360º of rotation. This rotating Arm is either mounted on wall, self supporting floor mounted coloumn or pillar supports. Jib Cranes are useful for loading or unloading material on machine tools & trucks.
Technical specification –
1.Safe working load – upto
6000 kgs
2.Arm Radius – Approx 8 mtrs.
3.Rotation
– Manually by hand or motorized rotation.
4.Lifting –
by CPB or Electrically operated Hoist
GOODS LIFTS
These are usefull for safe lifting of material in chemical , Pharma plant & other industries. Steel fabricated cage cabin is guided by ‘T’ guide rails on opposite sides for smooth lifting of material goods. Collapsible floor doors are provided with electro-mechanical door locking arrangement for safety so that the cage will not not move unless all the outside doors are closed properly.
Available in:-
1. Capacity upto 5000kgs.
2. Cage size upto 4 mts (Width) & 4
mtrs(Depth).
SCISSOR LIFTS
JAYCO manufacture Hydraulic scissor lifts, Hydraulic Heavy duty Scissor Lifts & Hydraulic Manual Scissor Lifts for indoor and outdoor applications.
Hydraulic Scissor Lift reduces need to bend to pick up goods, saving labor input to enhance work efficiency. It is used in applications like loading & unloading of goods in warehouse, conveying and lifting parts along assembly lines. It is suitable for heavy-duty applications or short lifting distance and also for lifting over larger distances, reduces labor input to enhance work efficiency, remote-controlled eases loading & unloading of materials.
Enquire NowHYDRAULIC STACKERS
JAYCO offers an extensive range of hydraulic stackers that are fabricated using high quality raw material. These hydraulic stackers comes in a capacity of 500 Kg to 1500 kg. Operation manual by hand and electric battery operated 24 volt DC battery & 440 volt AC
Features:
Light & Compact
Construction
Ergonomically designed
DRUM STACKER
JAYCO offers battery-operated Drum Stackers for stacking 2 to 3 drums vertically thus saving precious space & easy handling of drums.
Hydraulic Drum Lifter & Tilter
JAYCO offers
high performing hydraulic drum lifter &
tilter which are mainly used in the chemical &
pharma industries. These are single man operated trolleys for vertical
lifting, horizontal transportation & 360 deg rotation of the
drum.
CHAIN PULLEY BLOCK
JAYCO designed Chain Pulley Block is perfect to meet the modern material handling requirements. These Chain Pulley Blocks are highly safe, light‐weight, easy to handle, sturdy, durable, and are very reliable.
JAYCO Chain Pulley Blocks range from 500 kg to 30 Ton with lifting height ranging from 1 Mtr to 100 Mtr.
These are heavy-duty Manual Chain Pulley Blocks and the pulling effort requirement is relatively lower than the competition. Chain Blocks are widely used in factories, mines, docks, warehouses, construction sites, agriculture, and other fields, to lift goods and lifting equipment, in particular in conditions with no power supply.
Enquire Now
